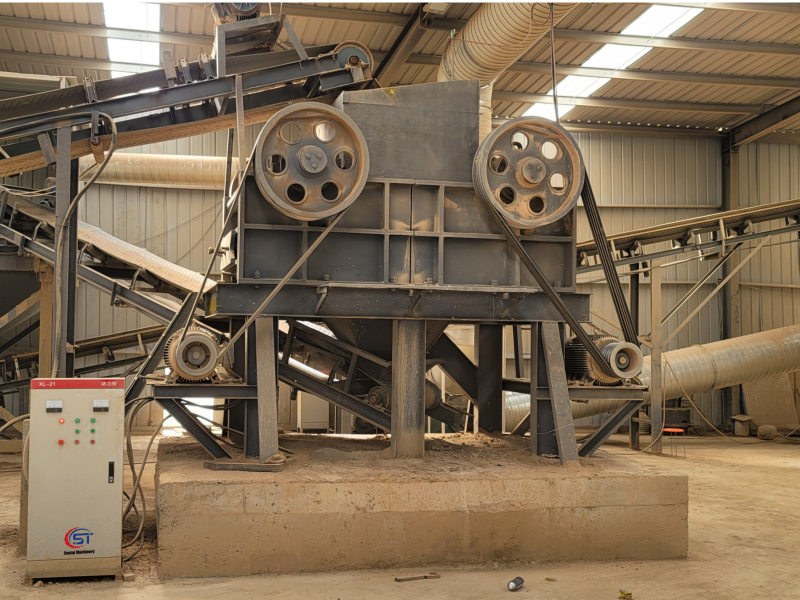

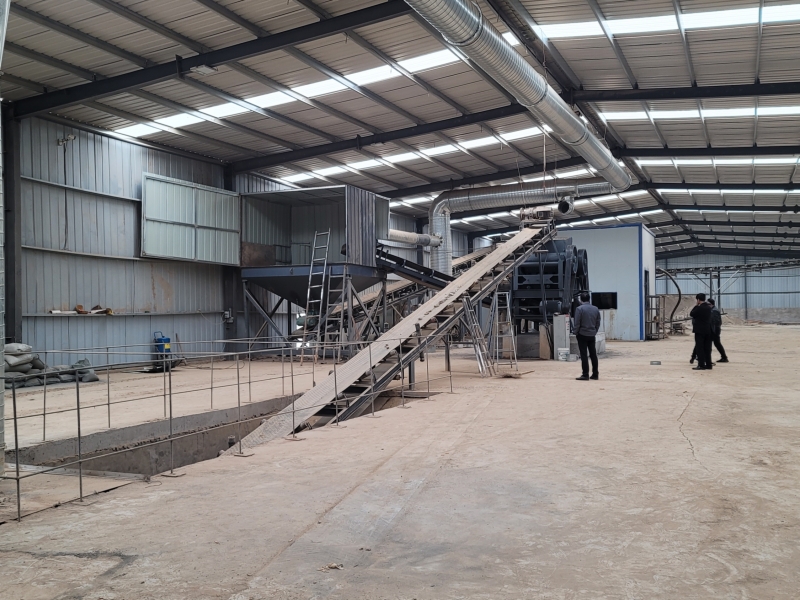

A 40-60 TPH (tons per hour) stone crushing plant produces graded construction aggregates from materials like limestone, granite, or basalt using a two-stage crushing and screening process.
Production Capacity: 60-80 tons per hour.

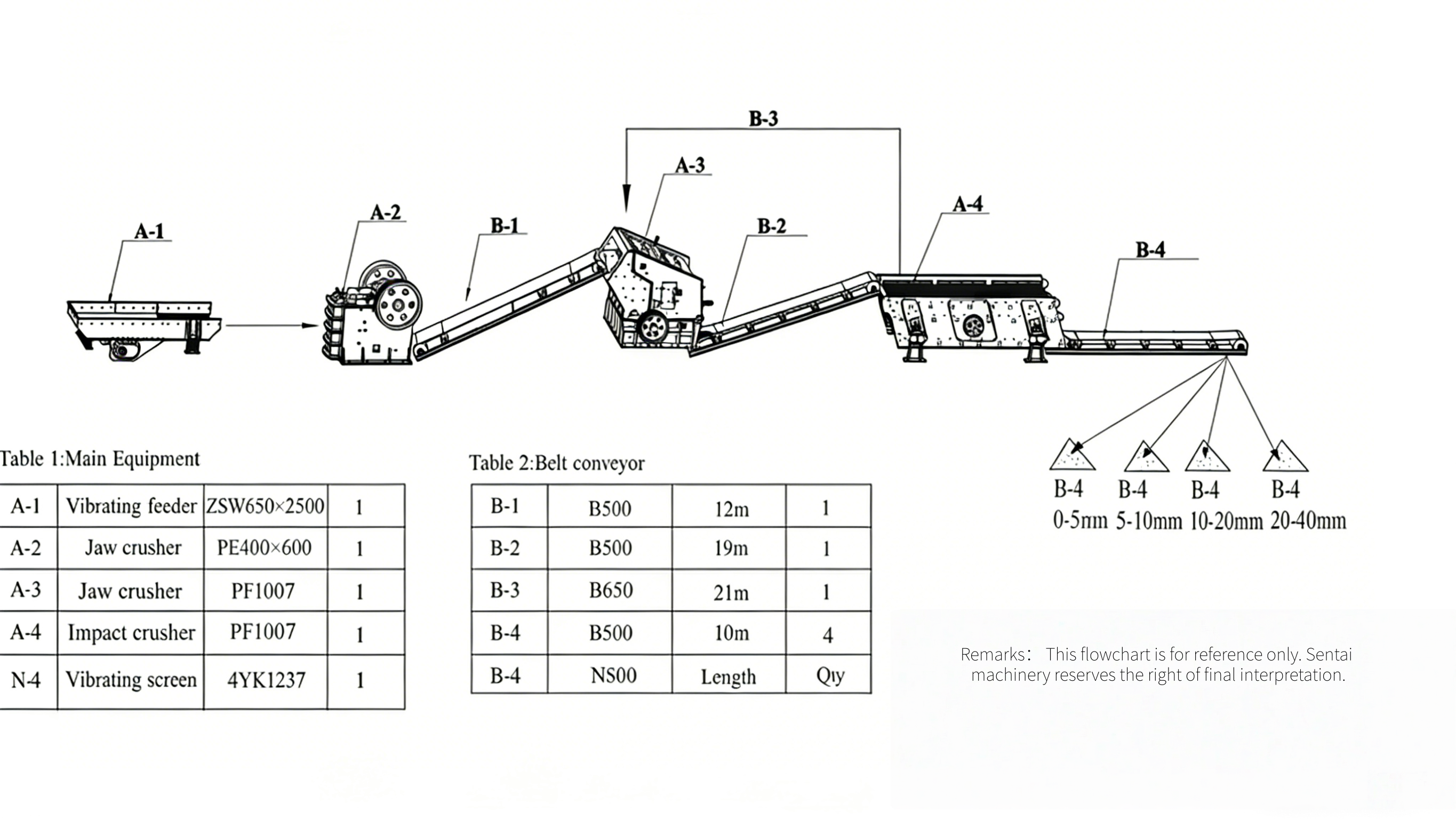

Core Equipment: Includes a vibrating feeder (ZSW650×2500), PE400×600 jaw crusher, PF1007 impact crusher, and 4YK1237 vibrating screen, connected by belt conveyors to ensure continuous crushing and screening.
Optional Equipment: Dust collectors and magnetic separators can be added to reduce emissions and remove iron impurities.
Applications: Small-scale quarrying, road construction, and concrete production.
Configuration: Stationary layout with return conveyor (B-3) to reprocess oversized materials, delivering 0-5mm, 5-10mm, 10-20mm, and 20-40mm finished aggregates.
Adopts energy-saving motors and optimized crushing chamber design, ensuring 40-60 TPH stable output with low power consumption. Sentai Machinery’s integrated system reduces material loss and improves processing efficiency.
Customizable combinations (jaw crusher + impact crusher / cone crusher) to adapt to different raw materials (soft limestone to hard granite) and final product requirements (cubic aggregates for construction, road base materials). Sentai Machinery provides tailored solutions for global project needs.
Equipped with intelligent PLC control panel for simple operation; wear-resistant parts are made of high-quality alloy steel, reducing replacement frequency and maintenance costs. Sentai Machinery’s modular design facilitates equipment installation and debugging.
Equipped with pulse bag dust removal system and noise reduction devices to meet international environmental standards (EU EMC, US EPA). Safety guards and emergency stop buttons ensure operator safety during operation—all Sentai Machinery equipment complies with global safety regulations.
Bulk stone materials (≤600mm) are fed into the jaw crusher evenly and continuously through a vibrating feeder, ensuring stable feeding and avoiding overload of the crushing equipment.
The jaw crusher performs coarse crushing of the raw materials, reducing the stone size to 100-200mm. It features a large crushing ratio, strong crushing capacity, and wear-resistant liners for long service life.
The coarsely crushed materials are conveyed to the impact crusher or cone crusher via a belt conveyor for medium and fine crushing, achieving the desired particle size (10-40mm) based on application requirements.
The crushed materials are sent to a vibrating screen for classification. Qualified products are collected as final aggregates, while unqualified materials are returned to the secondary crusher for re-crushing to ensure product uniformity.
Qualified aggregates are conveyed to storage silos or stockpiles by belt conveyors, completing the entire crushing process.
Note: Stcrushers can customize a set of 40-60 tph Stone Crushing Plant according to customer's needs.
